Description
- Video Input: 8 Channel
- TV System: NTSC,PAL
- PCS of Camera: 2PCS,4PCS,6pcs,8PCS
- Cable Length: None
- Model Number: AH-CWPNT3-45YF
- Brand Name: AHCVBIVN
- Origin: Mainland China
- Certification: CE
- Smart home platform: other
- Resolution: 8MP
- Video Compression Format: H.265
- NVR Resolution: 10CH POE 4K NVR
- Video Port: 10CH POE input / 1ch VGA output
- Audio Port: 1CH audio output(RCA)
- Remote View: Android, iPhone, iPad, pc,cms etc
- Camera Type: POE PTZ IP Camera
- Two Way Audio: Support
- IR Cut Filter: Support
- Full Color Night Vision: Support
- Day& Night: IR Cut filter with auto switch
- weatherproof: yes
- Camera Features: Color Day/night vision,IR-cut,Weatherproof
- POE NVR Features: VGA output / Motion detection/email Alert..
- Alarm System: Motion Detection+Email Alert
- Language: Multi language(English,Spanish,Russian etc.)
- Application: Home,store,shop,office,park,Supermarket etc
- Country of origin: China.Shenzhen
- Warranty: 3 years
NVR Main Features:
1.Ultra HD 4K High Definition Display,The NVR Can Support 8MP&4K max ,You can connect 720p,1080p,3mp,4mp ,5mp,8mp&4k cameras with our POE NVR;
2.Ultra HD 4K POE IP Camera,Suitable for indoor and outdoor, reliable home security;
3.Our NVR and Cameras Support Human detection,Provides ultra high definition surveillance video images, providing maximum detail and clarity available;
4.Our NVR and Cameras Support Advanced H.265 Video Compression,Power Over Ethernet,Plug and play ,Easy to use;
5.All Cameras are built-in Microphone and Speaker,Support Two -Way Audio Recording;
6.All Cameras Support Ultra HD Full Color Day Night Vision;
7.Support Motion Detection, Email Alerts, Video Playback,onvif protocol and Multi-Language;
8.Support Android,Iphone,Ipad,PC,VMS,P2P view;
9.Remote Access Anywhere,Anytime;
10.Suitable for all kinds of application places
Dual-Lens and Dual Screen
There are 2 video screens in APP, the upper one is PTZ camera and the lower one is camera fixed position camera. You can click the position you want to enlarge in the video of the fixed camera, and the 6mm lens PTZ camera will move to the specified position.
Clear Two Way Audio
Camera is built with microphone and speaker. So you can talk to your kids via your Smartphone remotely whenever you want.
4K NVR Super HD Resolution
High-Definition interface output, Suport for online playback, Mobile remote,Multi-window display with 8.0MP Resolution. The angle will be more larger, and the image will be sore clearer.
Ai Human detection
Effectively filter invalid alarms and make the alarms more accurate, it only detects the human movement. When the camera detects the human movement, you will receive the notification that APP pushed.
Motion Detection Alarm
Any suspicious movement thrown into the camera’ eye will be detected and recorded, leaving thieves and robbers nowhere to hide. At the same time, you will receive instant APP alarm pushes on your smart devices wherever you are.
Full Color Night Vision
When the white LED light is on, the camera will display colorful vision at night, and there are three night modes for you to choose.
Why choose H.265
H.265 More Clear , HD resolution offer you best image quality in a lower bit rate.Save more storage space,can reduce 40%-50% file size,save your HDD storage space and reduce your purchase cost.
PTZ Control by APP
PTZ system,a wider range. Pan Tilt Rotation, Horizontal:355°& Vertical:90°
IP66 Waterproof
The camera is equipped with IP66 case , which is waterproof, sun-proof and dust-proof. It is suitable for any environment.
Power Over Ethernet
NO extra power cables or adapters are needed and just by connecting a IP camera to NVR with a single cable, you can easily complete the installation without the knowledge about the computer or network and start enjoy the super easy monitoring among your smart-phone, tablet or PC.
Transmission Distance
POE System max support 150-200m POE Cables Transmission Distance, Which Greatly Increases Home Installation Convenience.
Remote Access Anywhere Anytime
View live video of the system from anywhere and anytime via you smarphone, table or PC with advanced P2P technology, you are able to remote access your system in minutes or less, no portforwarding needed, remote access has never been so easy!!!
Product Specifications
H.265 10CH 4K POE NVR Specifications:
System
Main processor: Embedded processor
Operating system: Embedded Linux
Video compression:H.265
System resource:Multi-channel real-time recording synchronously, multi-channel real-
time playback, multi-channel multi-user network operation, USB back up
Interface
Operation interface:16bit real color GUI interface support
Preview : 1/4/8/9
Video
Video standard :PAL; NTSC
Image encode:H.265
Monitor quality: VGA,HDMI:High definition
Video input :10*4K IP Camera
Motion Detection:Support
Email Alert : Support
Face Detection:Support
Face Playback:Support
Smart Playback:Support
Remote Access:Support
Audio
Audio compression :G.711A
Intercom : Yes
Record&Playback
Record mode:manual>alarm>motion detection>timing
Local playback:4K/8MP
Video search:Time, date, event, channel search
Storage&Back up
Video storage : Local HDD ,Network
Back up mode: Network backup, USB portable,HDD,USB imprint,SATA imprint
Interface
Video input:10CH POE Port
Video output : 1ch VGA,1ch HDMI HD output
Loop output : N/A
Audio I/O :1CH output
Alarm I/O:No
Network port:1*RJ45 1000M self-adaptive Ethernet port;10*POE ports support poe power
supply
USB port : 2* USB 2.0
HDD port :1 SATA ports,max support 8TB(HDD is optional)
Other
Power :48V
USB Mouse:included
Remote Control : included
Temperature : -20℃+50℃
Humidity : -10%-90%
Dimension : L255mm* W225mm* H45mm
Weight :2KG
NVR Language
Russian, English, Finnish, French, German, Greek, Italian, Japanese, Poland, Protugal, Spanish, Thai, Turkey Romanian, Slovakia, Czech, Arabic, Swedish and so on

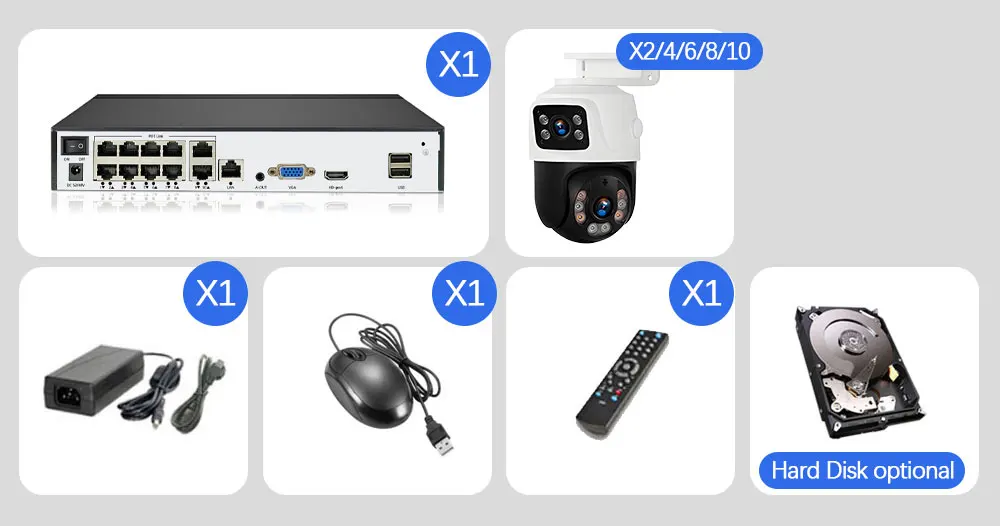

Package included
1 X 10CH 4K POE NVR Network Video Recorder;
2/4/6/8/10x 8.0MP POE PTZ Cameras
1x Power Supply for NVR
1x USB Mouse(gift)
1 X Remote Control for NVR;
Hard Disk Optional
